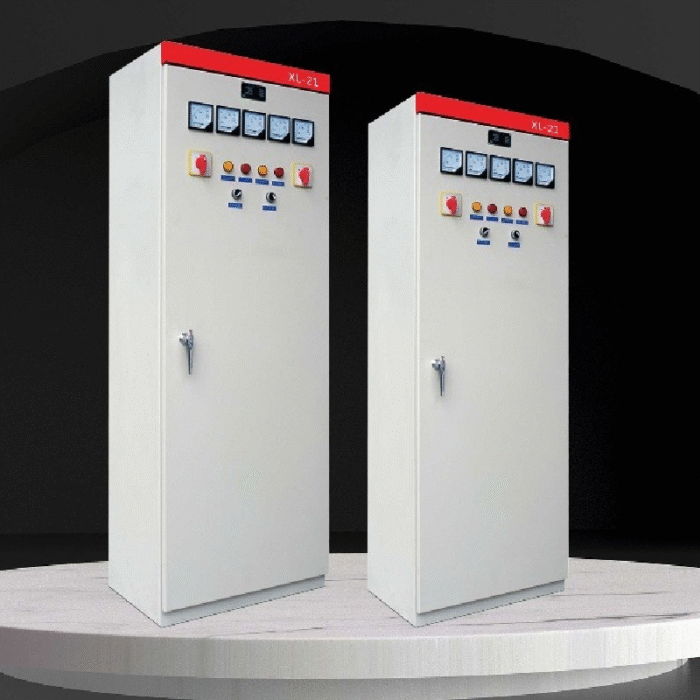

XL-21 Power Cabinet

Product Description

The XL-21 Power Distribution Cabinet is a fully enclosed floor-standing unit designed for industrial power distribution systems. As a standard model in China’s power equipment lineup, it provides reliable power distribution, motor control, and circuit protection for manufacturing plants, water treatment facilities, and infrastructure projects.

Compliance Standards: ISO9001, GB7251.1, CCC (custom certifications available).

Key Features:

✔ Standardized Design – Complies with Chinese GB/T standard for XL-21 cabinets
✔ Modular Structure – 8MF sectional frame with adjustable compartments
✔ Enhanced Protection – IP30 standard enclosure (IP54 optional)
✔ Flexible Configuration – Up to 20 circuit breakers in standard 800mm width
✔ Visual Monitoring – Transparent polycarbonate window option
✔ Corrosion Resistance – Galvanized steel with RAL7032 coating

Technical Specifications:

• Rated Voltage: AC 380V ±10% 50Hz

• Rated Current: 100A-1600A

• Short Circuit Rating: 30kA/1s

• Dimensions (H×W×D): 1800/2000×600/800×400/600mm

• Busbar Material: T2 copper with tin plating

• Color: Standard industrial gray (custom colors available)

Customization Process:

1. Submit Your Requirements – Provide electrical load calculations

2. Share Your Drawings – Layout diagrams for component placement

3. Select Components – Chint, Delixi, or international brands

4. Enclosure Fabrication – Laser cutting with CNC bending

5. Procurement & Assembly – UL/CE certified components

6. System Integration – Professional DIN rail mounting

7. Pre-Shipment Testing – Dielectric/continuity/operation tests

8. Global Delivery – Sea/air freight with export packaging
