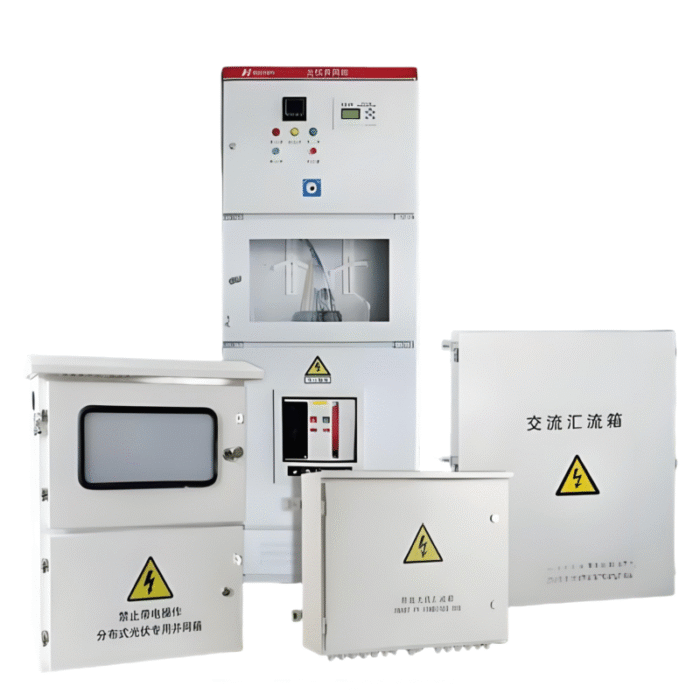

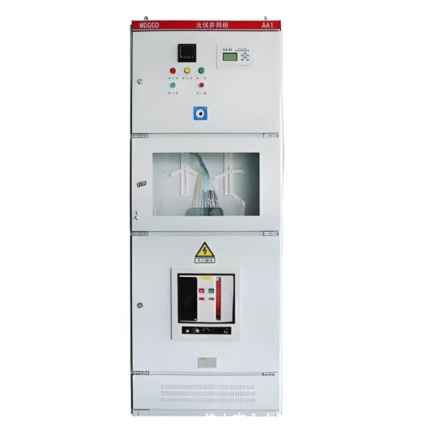

Photovoltaic Grid-Connected Cabinet Series

Product Description

Our Photovoltaic Grid-Connected Cabinet Series provides complete solutions for solar power systems, ensuring safe and efficient grid integration. Designed for commercial, industrial, and utility-scale PV plants, these cabinets feature advanced protection mechanisms and smart monitoring to maximize energy yield while complying with international grid-connection standards.

Compliance Standards: ISO9001, IEC 62109, VDE-AR-N 4105 (custom certifications available).

Key Features:

✔ Grid Compliance – Meets IEEE 1547/UL 1741 standards
✔ Intelligent Monitoring – Built-in data logger with Wi-Fi/4G
✔ Comprehensive Protection – Anti-islanding, over/under voltage
✔ Modular Design – 100kW-1MW capacity configurations
✔ Weatherproof – IP65 stainless steel enclosures
✔ DC/AC Separation – Clear partition for safety maintenance

Technical Specifications:

• Rated Voltage: AC 400V/690V

• Max Current: 630A-2500A

• Protection Degree: IP65 (outdoor) / IP54 (indoor)

• THD: <3% at full load

• Dimensions: 800-1200×600-1000×400-600mm

• Communication: RS485/Modbus/Ethernet

Customization Process:

1. Submit Your Requirements – Provide PV system parameters

2. Share Your Drawings – Single-line diagrams

3. Select Components – SMA/Huawei/Sungrow options

4. Enclosure Fabrication – CNC machining

5. Procurement & Assembly – Certified inverters/breakers

6. System Integration – Professional busbar assembly

7. Pre-Shipment Testing – 72hr continuous operation

8. Global Delivery – Sea/air freight options
