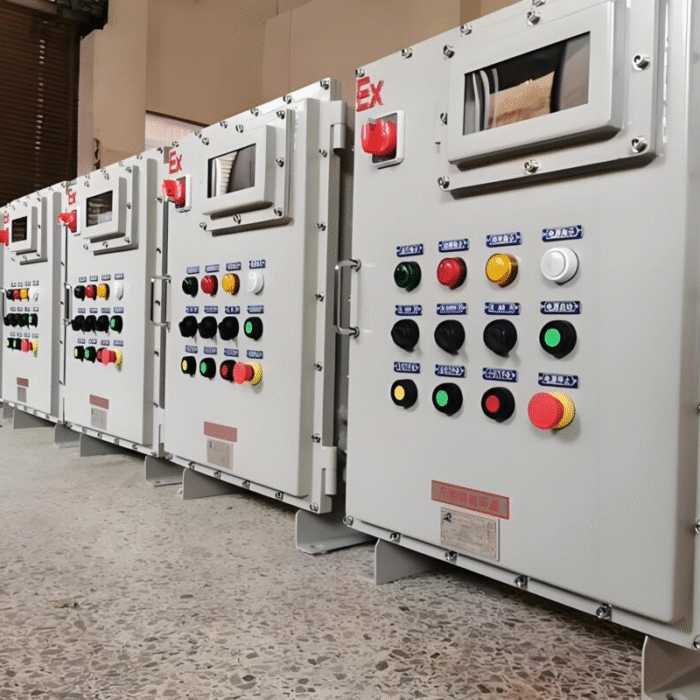

Explosion-proof distribution box

Product Description

Our Explosion-Proof Distribution Box is engineered for hazardous environments where flammable gases, vapors or dust may be present. Certified to international explosion-proof standards, it ensures safe power distribution in oil & gas, chemical, mining and other high-risk industries. The rugged construction prevents internal sparks from igniting surrounding explosive atmospheres.

Compliance Standards: ISO9001, ATEX, IECEx, GB3836 (custom certifications available).

Key Features:

✔ Explosion-Proof Design – Flameproof enclosure (Ex d) or increased safety (Ex e)
✔ Robust Construction – Cast aluminum alloy or stainless steel housing
✔ Secure Sealing – Threaded conduit entries with explosion-proof seals
✔ Corrosion Resistance – Powder-coated or stainless steel options
✔ Temperature Control – Heat dissipation fins or cooling systems
✔ Flexible Configuration – Wall-mounted or pole-mounted installation

Technical Specifications:

• Protection Type: Ex d IIC T6 / Ex e II T5

• Material: Cast aluminum (ADC12) or 316 stainless steel

• Protection Level: IP66 standard (IP67 available)

• Temperature Range: -40°C to +60°C

• Cable Entry: M20-M63 threaded entries

• Color: Industrial gray (custom colors optional)

Customization Process:

1. Submit Your Requirements – Provide application details and specifications.

2. Share Your Drawings – Technical diagrams for design reference.

3. Select Components – Choose preferred brands and specifications for parts.

4. Enclosure Fabrication – Manufacture the cabinet based on design standards.

5. Procurement & Assembly – Source and integrate electronic components.

6. System Integration – Assemble and install components into the enclosure.

7. Pre-Shipment Testing – Conduct comprehensive functional and safety tests.

8. Global Delivery – Ship the final product from our Chinese factory to your location.
