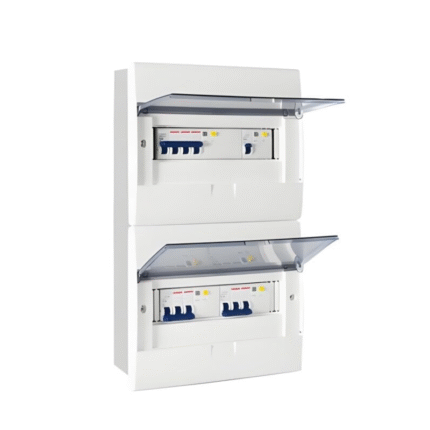

Human Defense Power Distribution Box

Product Description

Our Human Defense Power Distribution Box is a specialized safety electrical enclosure designed to prevent accidental electric shocks in public spaces. Incorporating advanced leakage protection and touch-proof technology, it provides the ultimate protection for schools, parks, swimming pools and other areas where human contact risk exists.

Compliance Standards: ISO9001, IEC60479, GB/T 13870 (custom certifications available).

Key Features:

✔ Ultra-Safe Design – 30mA high-sensitivity RCD protection
✔ Touch-Proof Structure – Double insulation with IP65 rated enclosure
✔ Visual Safety Indicators – Clear warning labels and status lights
✔ Child-Proof Locks – Tamper-resistant screwless fasteners
✔ Emergency Cut-off – Big red panic button for instant power shutdown
✔ Durable Construction – Fiber-reinforced polymer housing

Technical Specifications:

• Protection Level: IP65 (outdoor rated)

• Rated Voltage: AC 230V ±10%

• Leakage Protection: ≤30mA/0.1s tripping

• Impact Resistance: IK10 (20J impact protection)

• Operating Temp: -30°C to +70°C

• Enclosure Material: V0 flame-retardant composite

Customization Process:

1. Submit Your Requirements – Provide safety protection level needed

2. Share Your Drawings – Installation layout diagrams

3. Select Components – Legrand/Schneider safety components

4. Enclosure Fabrication – Mold injection for precise safety gaps

5. Procurement & Assembly – Medical-grade safety components

6. System Integration – Fail-safe wiring implementation

7. Pre-Shipment Testing – 5000V dielectric/leakage tests

8. Global Delivery – Safety-certified export packaging
